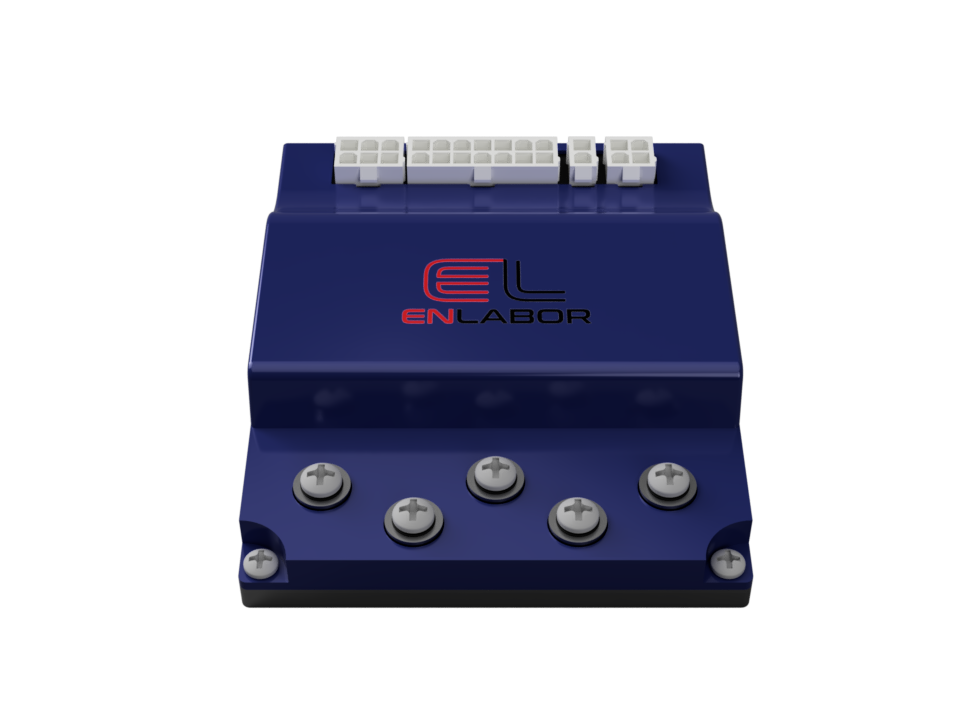

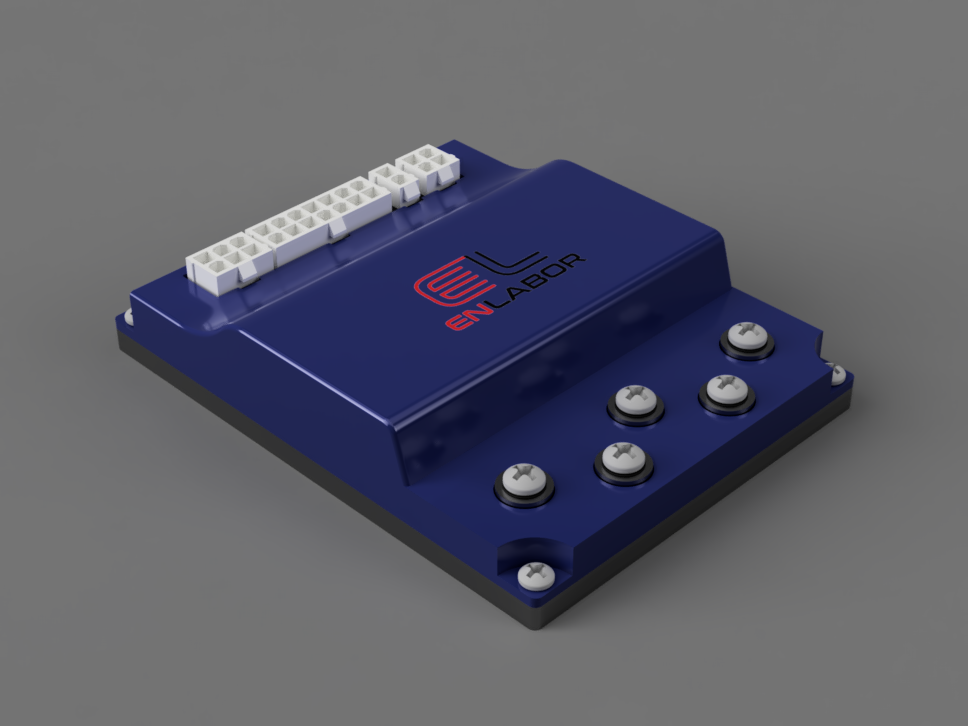

PICCOLO 50
Compact inverter. Flexible control.
A space-efficient inverter for industrial and energy applications, with CAN and RS485 communication, configurable inputs and outputs, and independent power outputs.
BUILT AROUND YOUR APPLICATION
Let's find your configuration.
Request a quotationOur team will confirm specifications, availability and pricing.
PRODUCT DETAILS
Designed for integration.
- Compact integration for electric motor systems.
- Configurable interfaces for machine-level control.
- Independent power outputs for auxiliary functions.
Specifications
| Input voltage | 12-48 V |
|---|---|
| Continuous current | 30 A |
| Peak current | 50 A (up to 2 minutes) |
| Continuous power | 1440 W at 48 V |
| Peak power | 2400 W at 48 V |
| Communication | CAN / RS485 |
| Configurable I/O | 10 |
| Power outputs | 3 x 2 A |
| Dimensions | 113 x 86 x 25 mm |
Published reference information. The confirmed technical documentation for your supplied configuration takes precedence.
